Brakes(CBS)
Front Disc(240mm) /Rear Disc(240mm)

Tyres
Front 90/80-17 /Rear - 110/80-17

Front Fork
Upside Down Forks

Rear Suspension
Monoshock(Adjustable)

Battery Type
Lithium Ion

Voltage/Wattage
72V, 3.24KWh

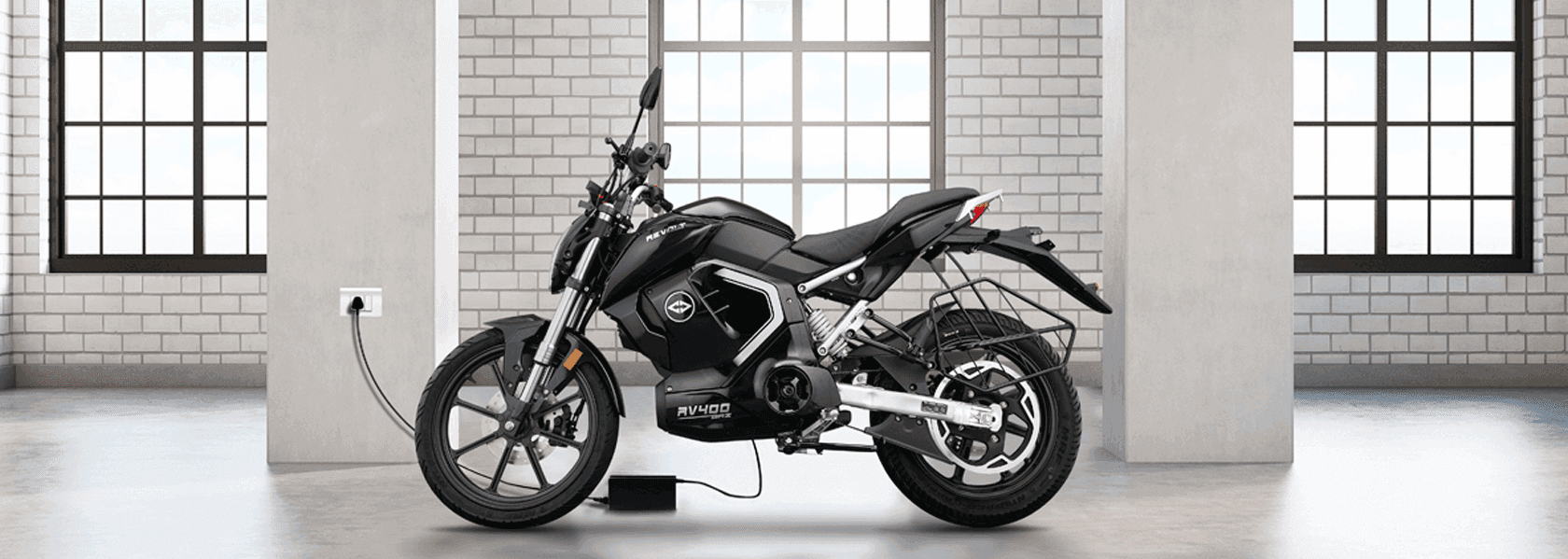

Charging Time
0-75% in 3 Hours And 0-100% in 4.5 Hours

Motor
3KW (Mid Drive)

Weight
115Kg

Wheel Base
1350mm

Seat Height (Rider)
814mm

Carrying Capacity
2 Persons/Maximum 150Kg

Lighting
LED Head Lamp(Projection for High beam), Tail Lamps And Indicators (All LED)

Ground Clearance
215 mm

Range
150kms(Eco Mode), 100kms(Normal Mode), 80kms(Sports Mode)

Product Warranty
5 years or 75,000 Kilometres *, whichever occurs first.

Battery Warranty
5 years or 75,000 Kilometres *, whichever occurs first.

Charger Warranty
2 years only, from the
date of purchase.

Ignition Type
Mechanical Key
* "Standard warranty shall be for 3 years or 40,000 kilometers (whichever occurs first) on Vehicle and 3.25 years or 40,000 kilometers (whichever occurs first) on Battery, from the date of purchase of vehicle. Remaining period / kilometers of warranty shall be treated as extended warranty and shall be provided by Revolt’s authorized service provider only, subject to subscription in Revolt Protect Plan. Customer can subscribe to Revolt Protect Plan at nominal subscription charge. Customer to contact authorized service provider to avail extended warranty".
